Propeller Make-up Elevated Cast Iron Receiver Boiler Feed Unit

Boiler Feed Pumps & Surge Tanks

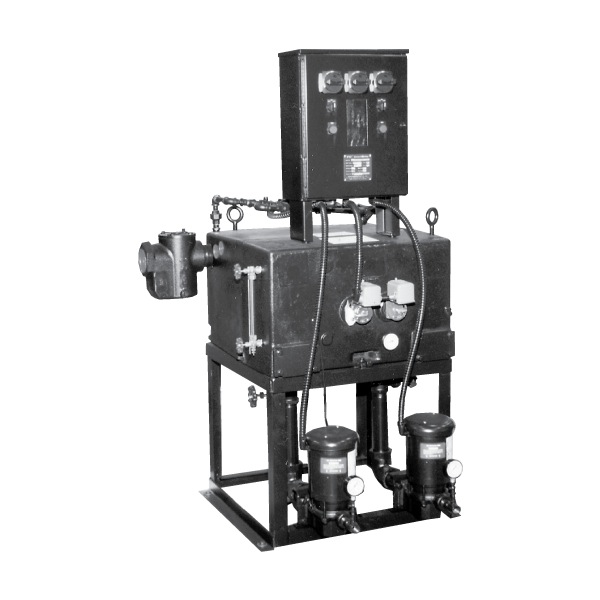

A Propeller Make-up Elevated Cast iron receiver boiler feed unit for water temperatures up to 212°F and boiler capacities ranging from 40 BHP up to 750 BHP. A standard, close-grained, cast iron receiver is provided with a standard 20-year warranty against corrosion failure for years of service; receiver sizes range from 25 gallons to 500 gallons. Unit is elevated allowing for hot condensate without pump cavitations.

An electrical solenoid make-up water valve with float switch control is standard. Units built in either simplex or duplex configurations with single-phase or three-phase motors; motors available at 3500 RPM for low inertia, intermittent operation. Unit equipped with Model P pumps that have low NPSH requirements. Pumps are bronze-fitted to resist corrosion and prevent seizing; pumps also furnished with mechanical seals rated for temperatures up to 250°F. Higher temperature seals and special faces available upon request.

Other accessories include gauge glass assembly, thermometer, inlet strainer, butterfly isolation valve, low-water cut-off or alarm switch and electrical control panels.
