Model AWMulti-stage, Centrifugal, Close-coupled Pump
Model AWF & AWF-BMulti-stage, Centrifugal, Flex-coupled Pump
Model DSingle-stage, Centrifugal Pump
Model GNUSingle-stage, Centrifugal, 316L Stainless Steel Top-Mounted Pump
Model HSingle-stage, Centrifugal, In-line Pump
Model MUSingle-stage, Centrifugal, Top-Mounted Pump
Model PTwo-stage, Centrifugal, Low NPSH Pump
Model TSingle-stage, Turbine Pump
Model USingle-stage, Centrifugal, Top-Mounted, Underground Pump
Various models and style designed specifically to pump hot condensate over a wide range of flow and pressure applications. Pumps can be centrifugal or turbine; centrifugal pumps available as single stage or multi-stage. Pumps can be vertical or horizontal flange mounted with 1750 RPM or 3500 RPM motors in single or three-phase. Pumps with low required NPSH for applications with minimal available NPSH to minimize effects of cavitations. Pumps typically bronze fitted with removable wear ring and impeller and equipped with industry standard motors that can be purchased locally. Suction strainers are not recommended on centrifugal pumps for these applications.
Pumps typically equipped with mechanical seals rated for temperatures up to 250°F; higher ratings standard on deaerator applications. Higher temperature seals and special faces available upon request.

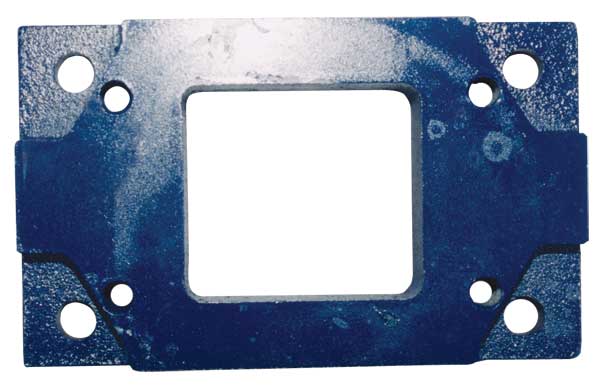

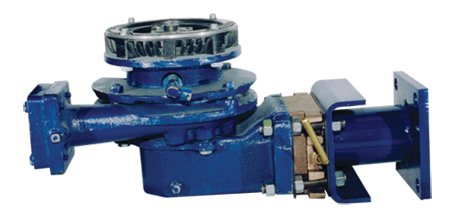

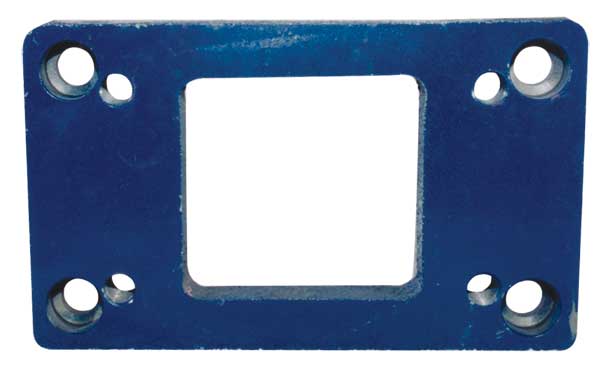

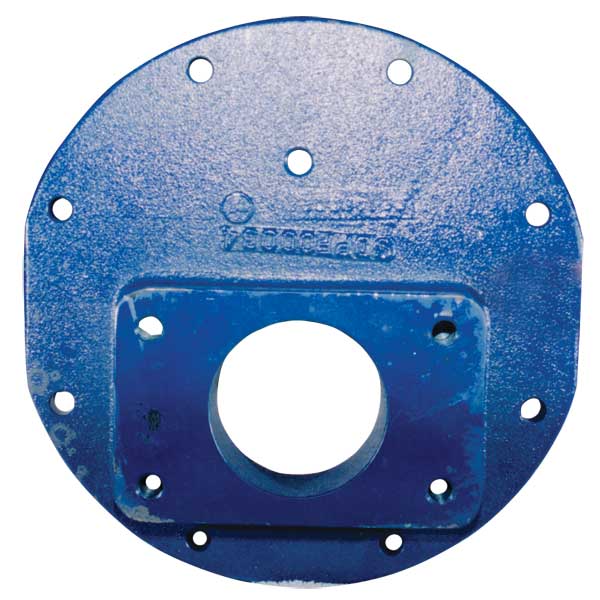

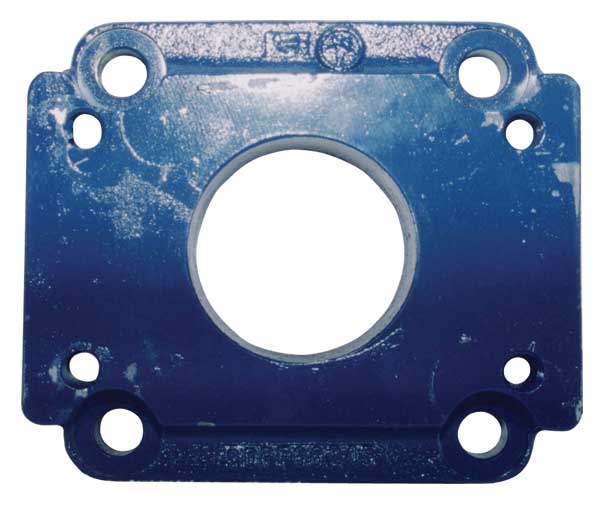

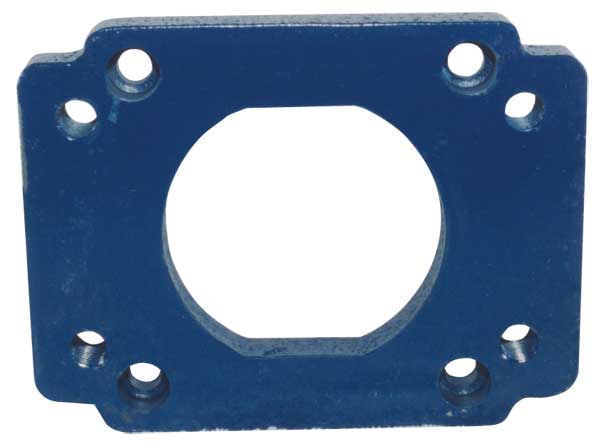

Shipco® pumps can typically be directly bolted to installed condensate units, boiler feed units and surge tanks built by ITT Domestic, ITT Domestic-Ames and ITT Hoffman. With adapter flanges designed by Shipco®, our pumps can also be easily retrofitted to receivers made by the following manufacturers below. For manufacturers not explicitly listed, custom adapter flanges can typically be designed.
Retrofit Adapter Flanges - Aurora, Dunham Bush, Economy, Federal, Nash, Skidmore, Sterling, Weinman (Booklet) (PDF, 92.2 KB)
Retrofit Adapter Flanges - Aurora, Dunham Bush, Economy, Federal, Nash, Skidmore, Sterling, Weinman (Flyer) (PDF, 192.3 KB)
Shipco® Adapter Flanges Retrofit to Receivers by these Manufacturers
|Kansas City Deaerator
